Views: 0 Author: Lena Publish Time: 2025-06-26 Origin: Site

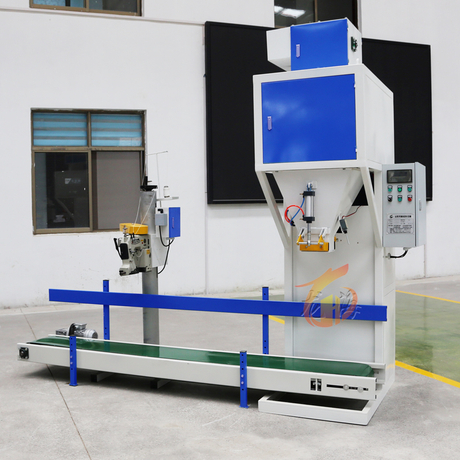

Model | DCS-L-W-50 |
Material | SUS304 Contact parts |
Gross Weight | 550kg |
Packing Capacity | 200-300bags/h |
Weighing Range | 5-50kg or Customized |
Quantify Precision | ±0.2% |
Powder | 5.0kw |
Powder Suply | AC 220V/380V 50 HZ 1P/3P Customized |
Air Source | 0.4~0.6MPa 0.36m³/min |
Application Materials | Applicable for packing powder-like materials, such as flour, wheat flour, starch, etc. |
SCOPE OF APPLICATION
PRODUCT DETAILS
•Use AirTAC cylinder as power, longer service life.
•Ring folder bag institutions, make the bag with the feed opening sealed tightly,
and can reduce dust spillover
•Discharge port can be customized to accommodate more bags
•Automati Zero-Tracking function
•20 recipes can be stored for different weighing capacity.
•5 inch TFT LCD concise operation interface
•Adaptive optimization algorithm to accelerate working pace and increase accuracy
•Suitable for woven bags, kraft paper bags
•Double thread sewing, Maximum sewing thickness 8mm
•It detects bags’ position by Omron photoeletric sensor and automatically disconnect
•Can choose other brands, Qinggong, Newlong, Tianpeng
•The power of the motor is 0.37 Kw, brass core motor, more durable
•The width of the belt is 400mm, the length is 3m
•Height can be adjusted according to the bag, speed is 5-20 m/min
ADVANTAGE
* The material contact part is made of 304 stainless steel, more durable
* The machine body adopts plastic spraying process, surface is smoother and anti rust
*Professional digital instrument, easy to operate, stable performance
*Pneumatic control technology, fast speed and high precision
*Automatic alarm for out of tolerance, automatic data accumulation
