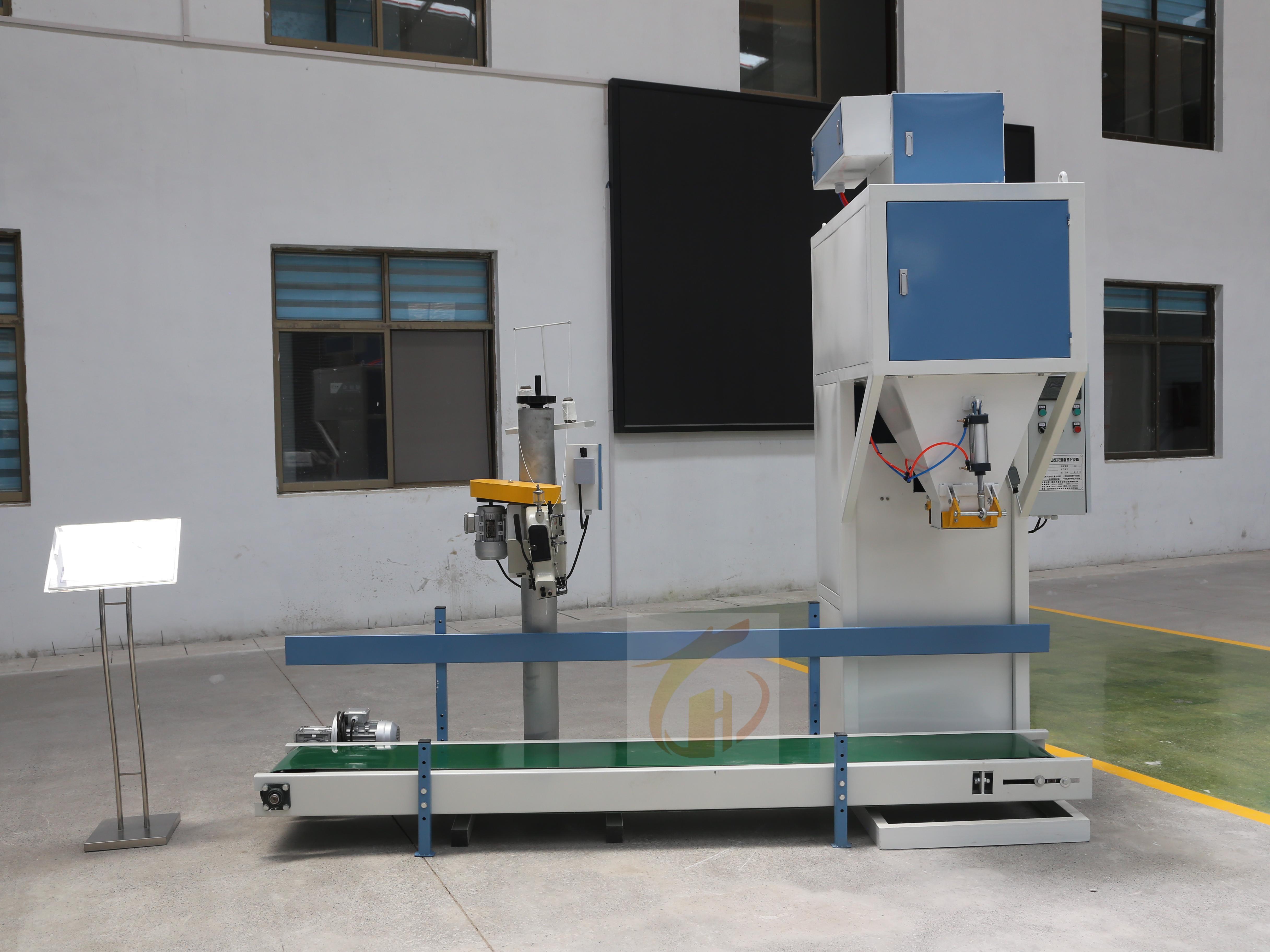

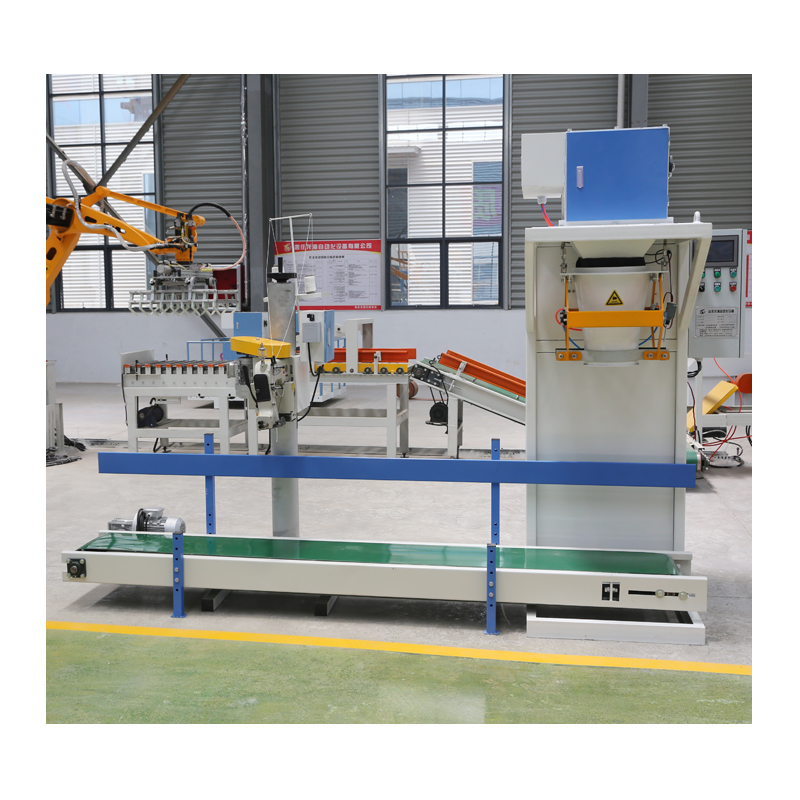

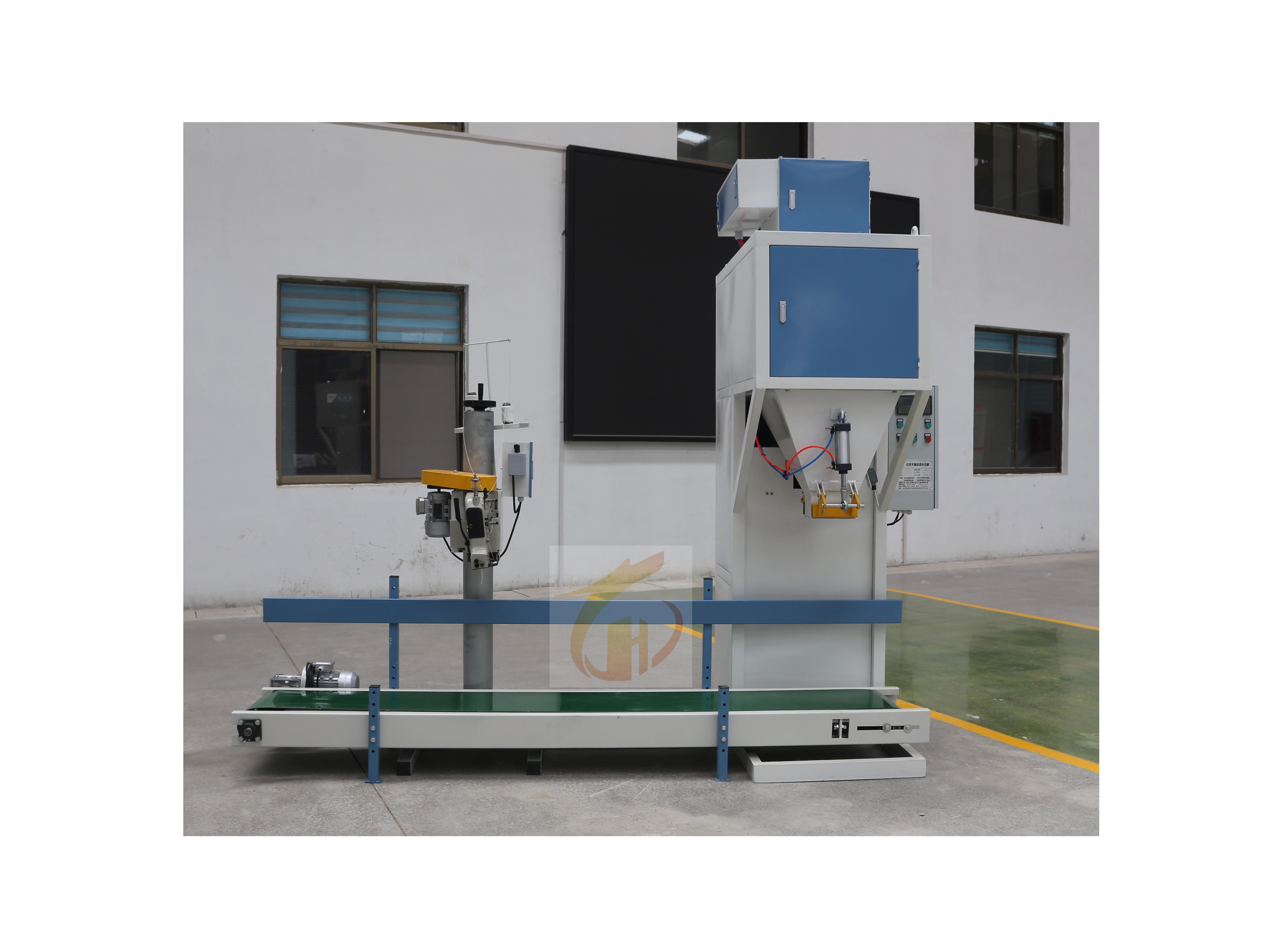

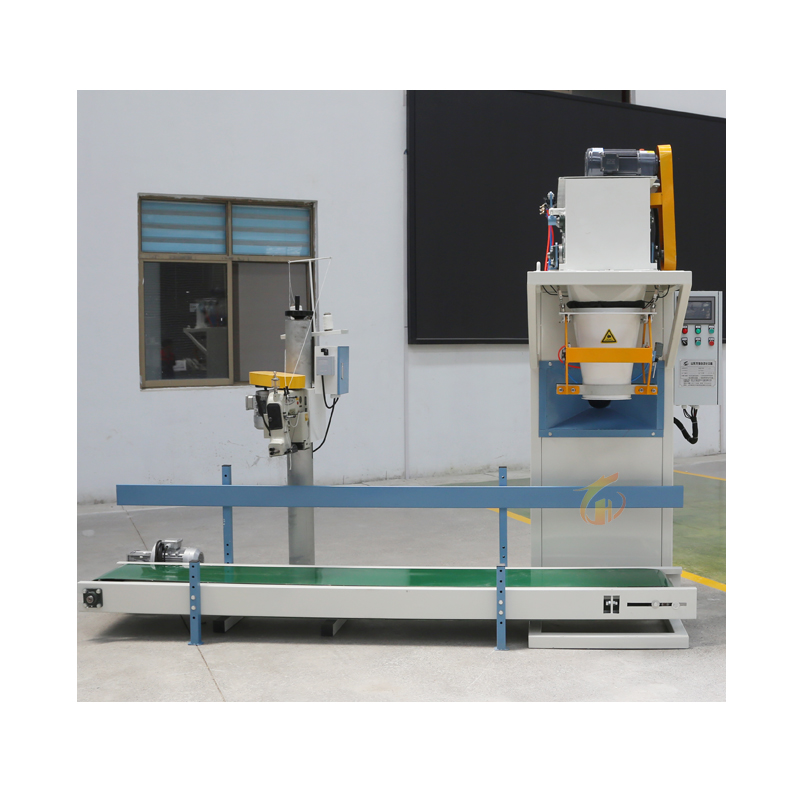

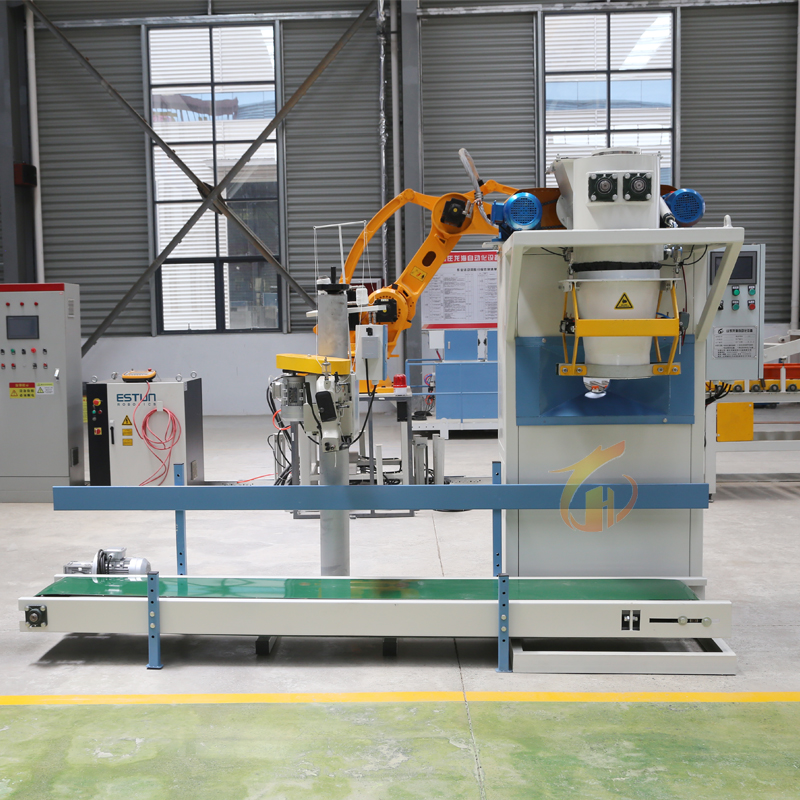

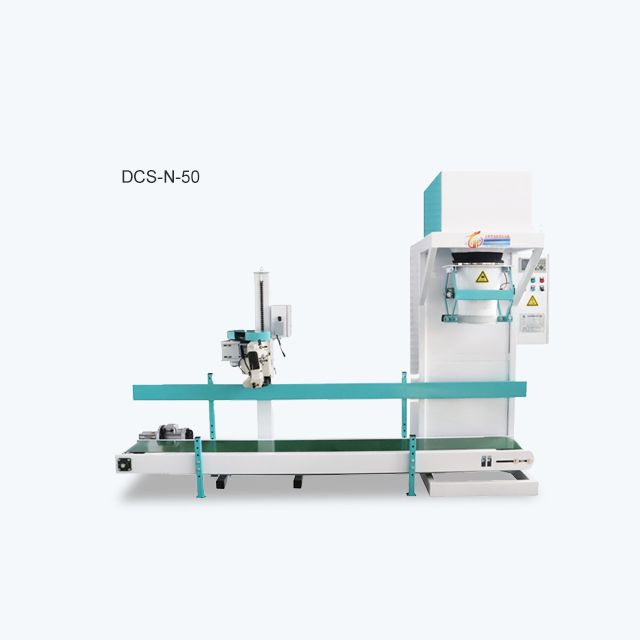

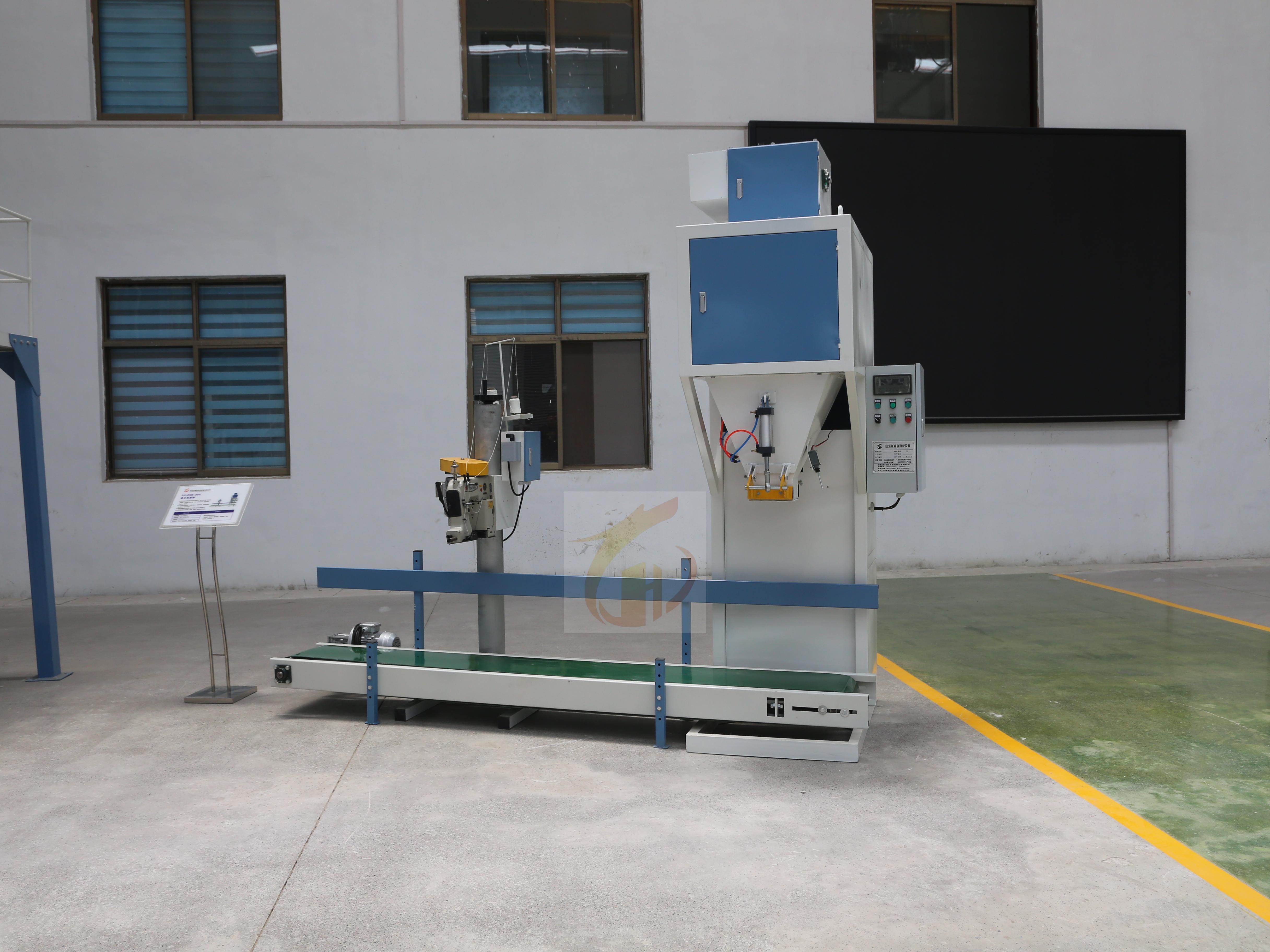

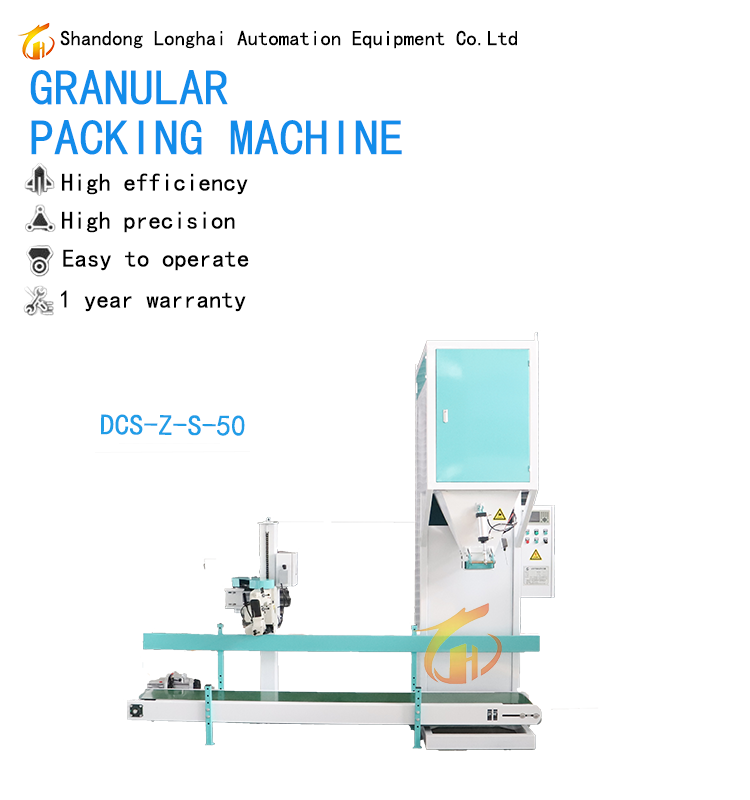

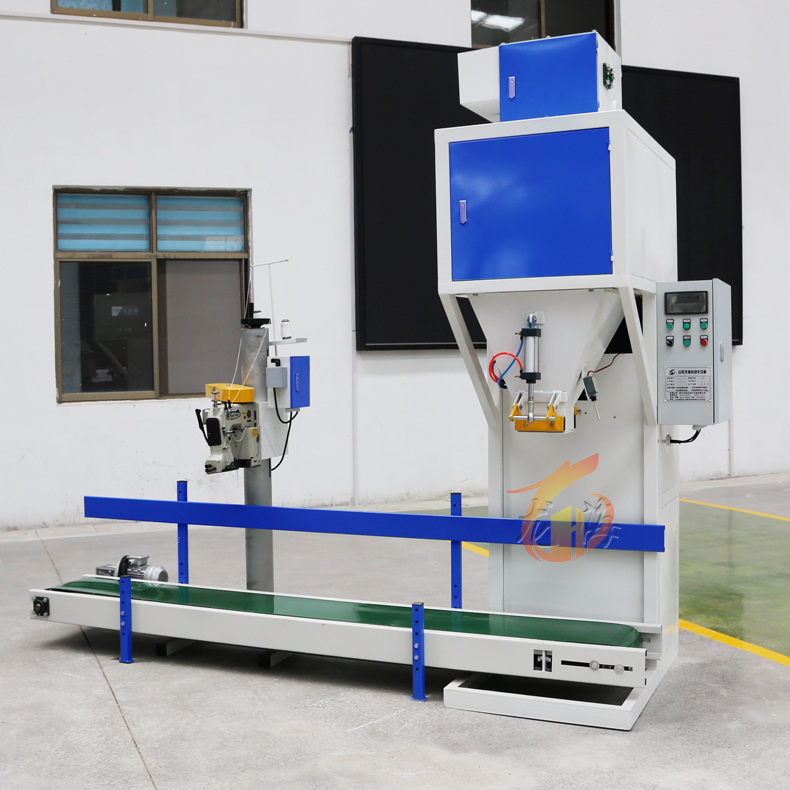

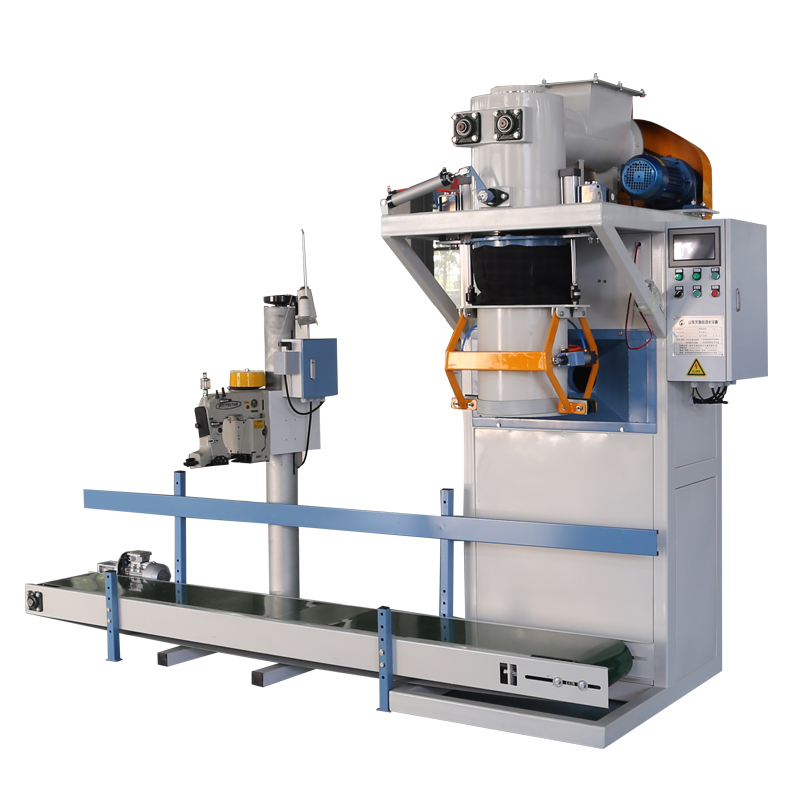

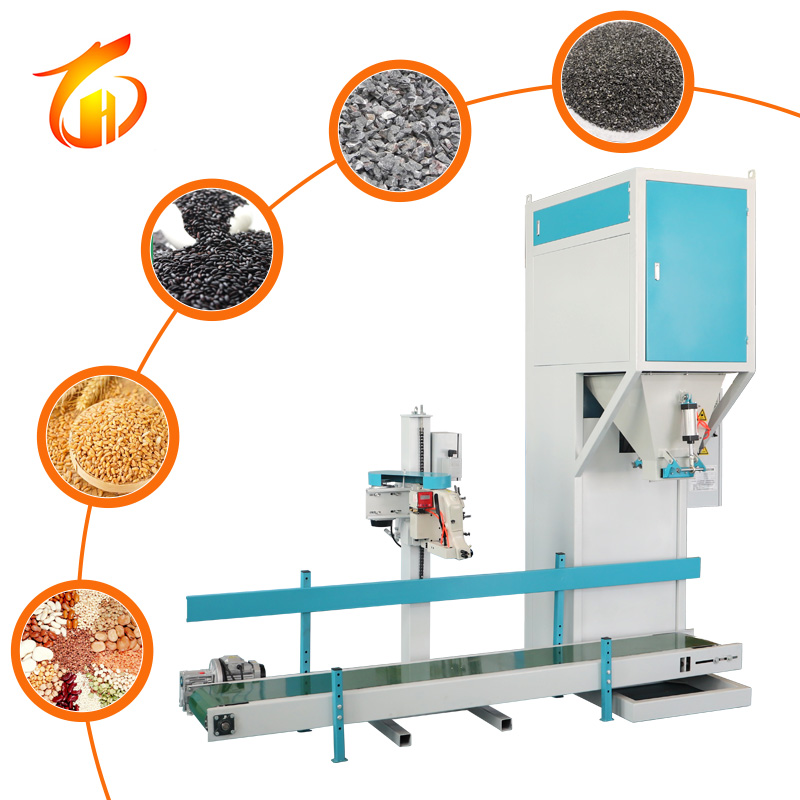

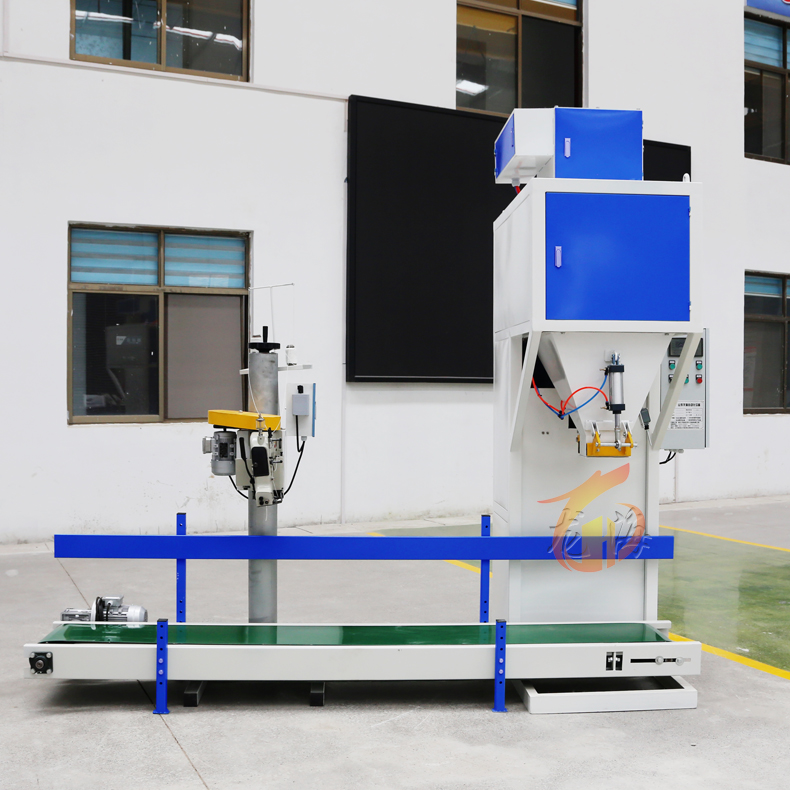

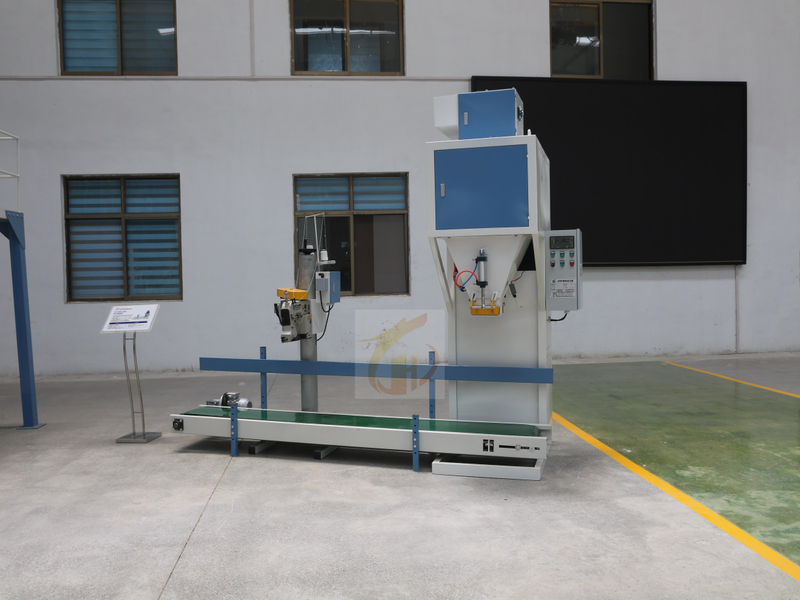

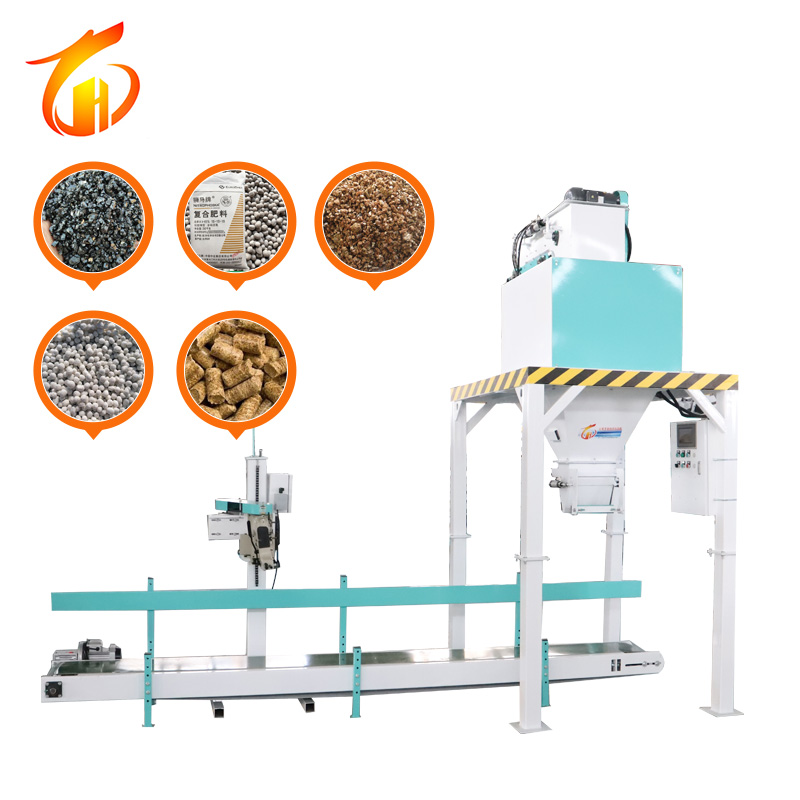

25kg Automatic Corn Packaging Machine High Productivity Easy Operation Plastic Paper Bag Filling Sealing Pump PLC for Food

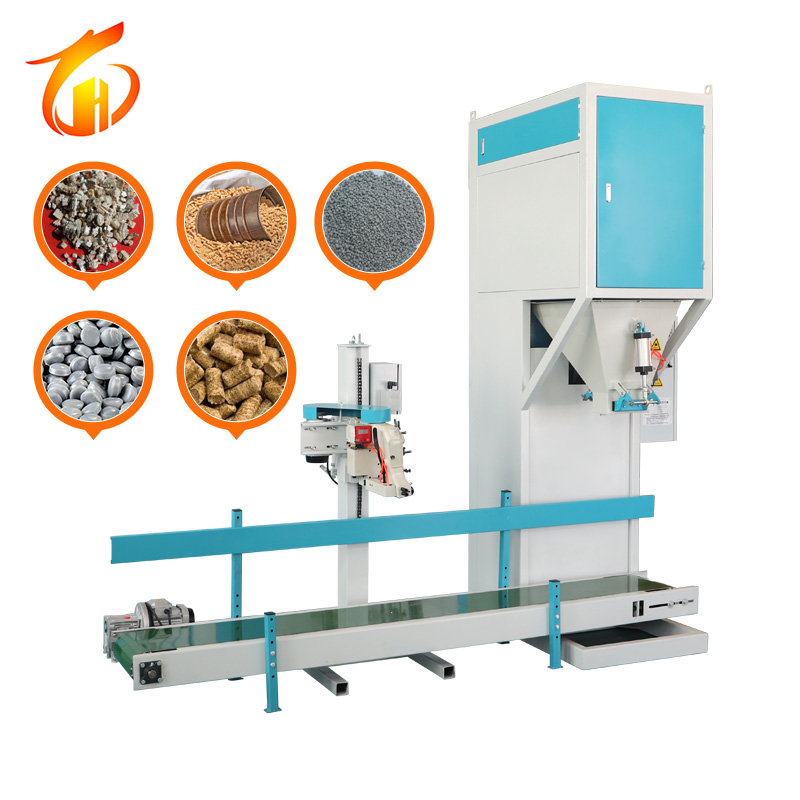

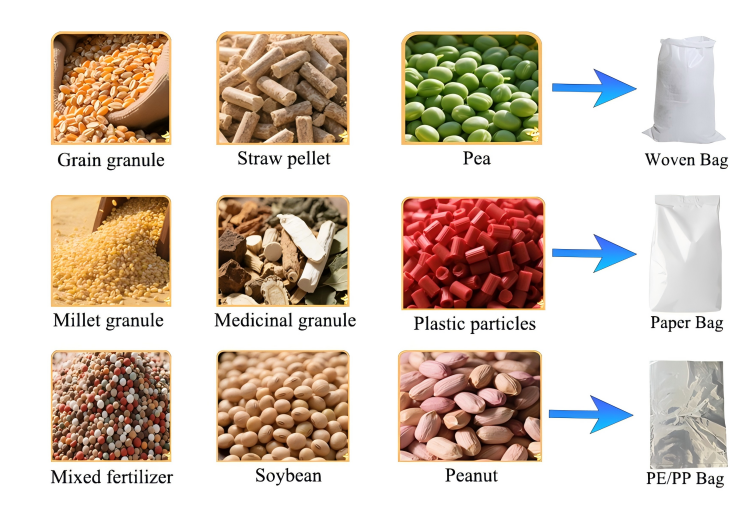

SCOPE OF APPLICATION

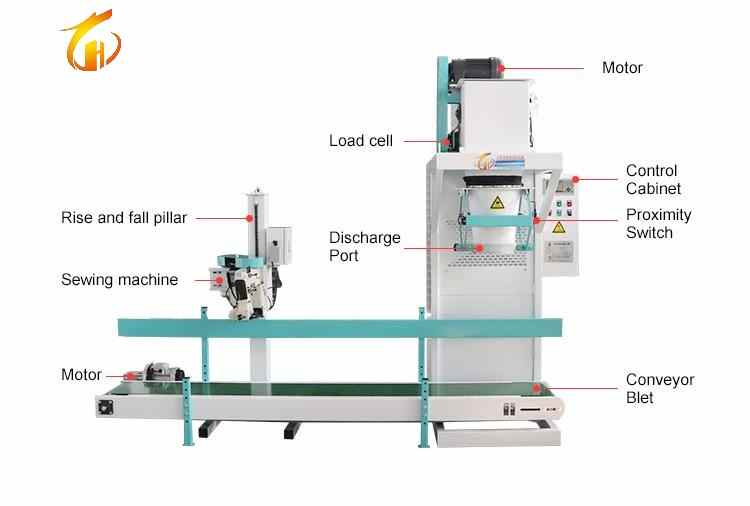

PRODUCT DETAILS

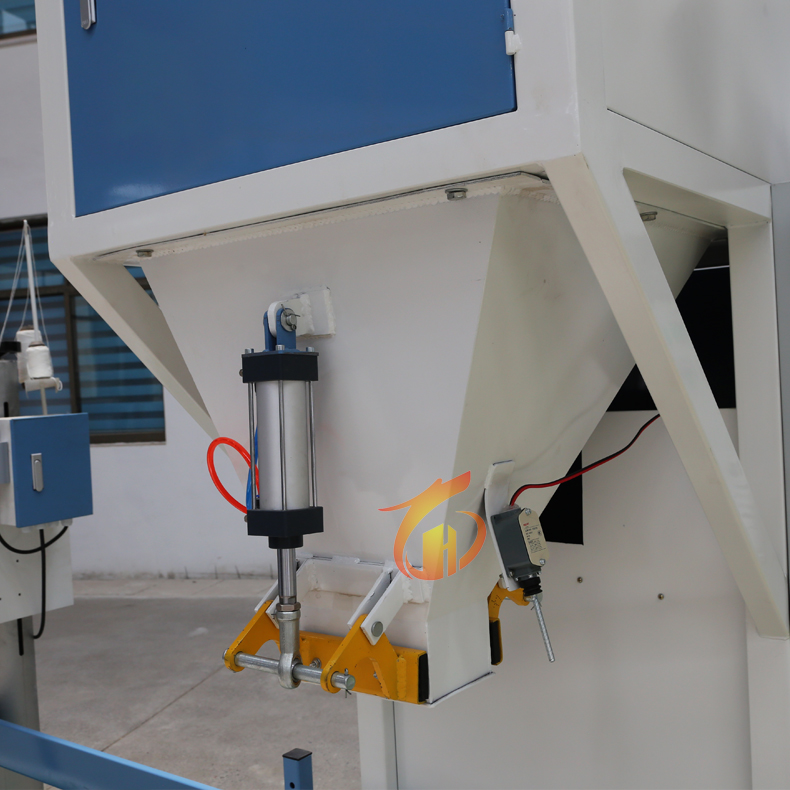

Discharge Port

•Use AirTAC cylinder as power, longer service life.

•Ring folder bag institutions, make the bag with the feed opening sealed tightly,

and can reduce dust spillover

•Discharge port can be customized to accommodate more bags

Weighing Controller

•Automati Zero-Tracking function

•20 recipes can be stored for different weighing capacity.

•5 inch TFT LCD concise operation interface

•Adaptive optimization algorithm to accelerate working pace and increase accuracy

Automatic Sewing Machine

•Suitable for woven bags, kraft paper bags

•Double thread sewing, Maximum sewing thickness 8mm

•It detects bags’ position by Omron photoeletric sensor and automatically disconnect

•Can choose other brands, Qinggong, Newlong, Tianpeng

Conveyor Belt

•The power of the motor is 0.37 Kw, brass core motor, more durable

•The width of the belt is 400mm, the length is 3m

•Height can be adjusted according to the bag, speed is 5-20 m/min
