Home » Products » Robotic Bag Palletizers » LH130 4 axes Fully automatic feeding Cereals Robotic palletizer

Product Category

25kg 50kg Bags High-speed fully automatic Cement bag Robot Palletizer

LH130 4 axes Fully automatic feeding Cereals Robotic palletizer


Availability:

Quantity:



Inquire Add to Basket

Palletizing robots are mainly used in the palletizing and handling of cartons, plastic boxes, bags and other materials, and are widely used in the production of beverages, bottled water, flour, and fertilizers.

Model:
LH120-2400

automatic Cement bag Robot Palletizer

Product Description

Packing scale (1)

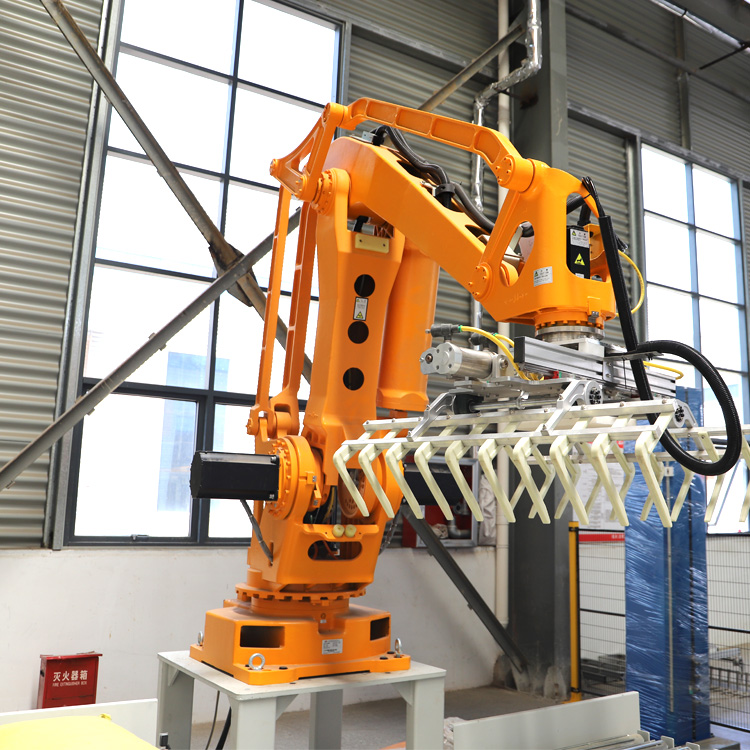

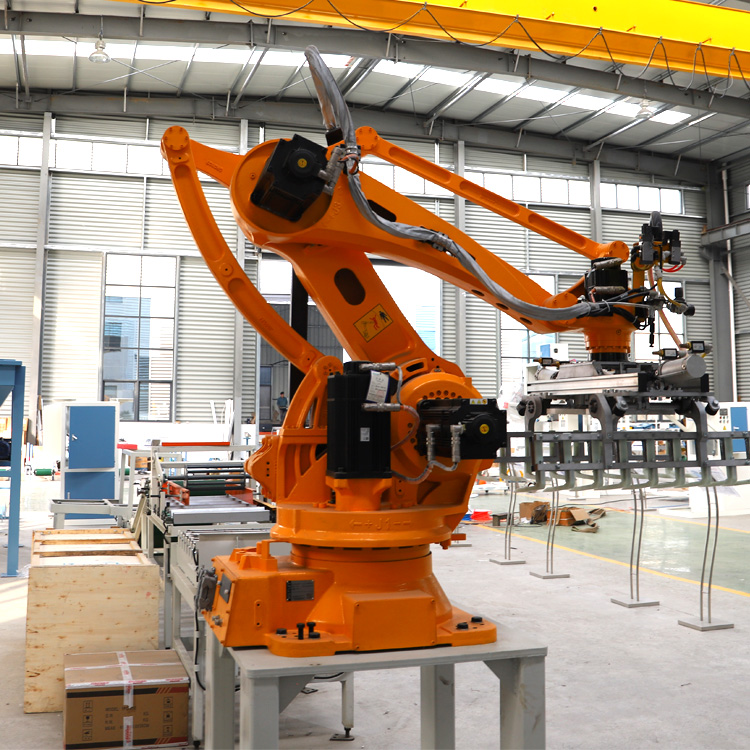

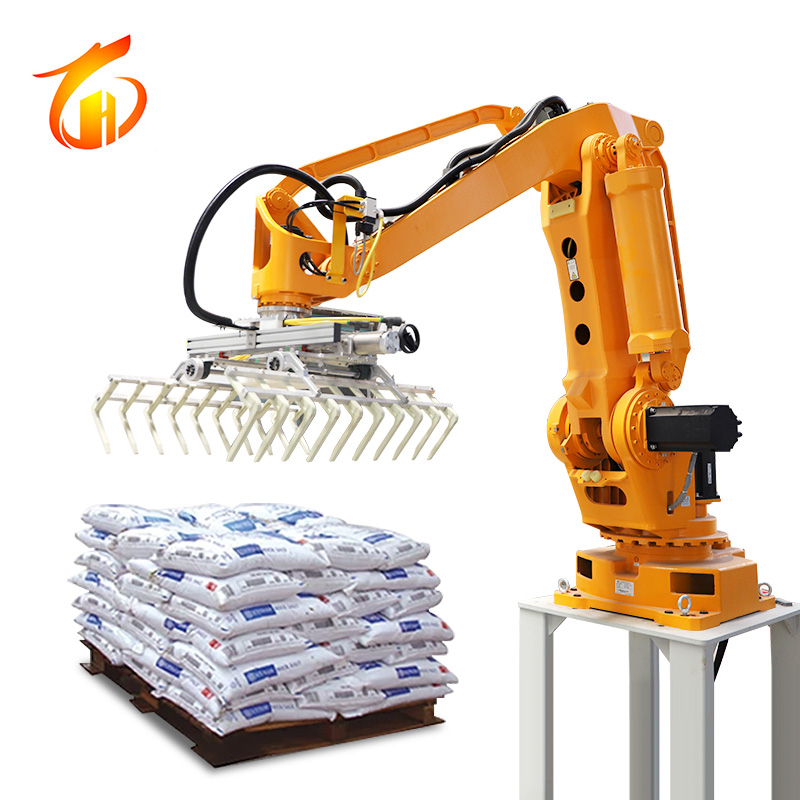

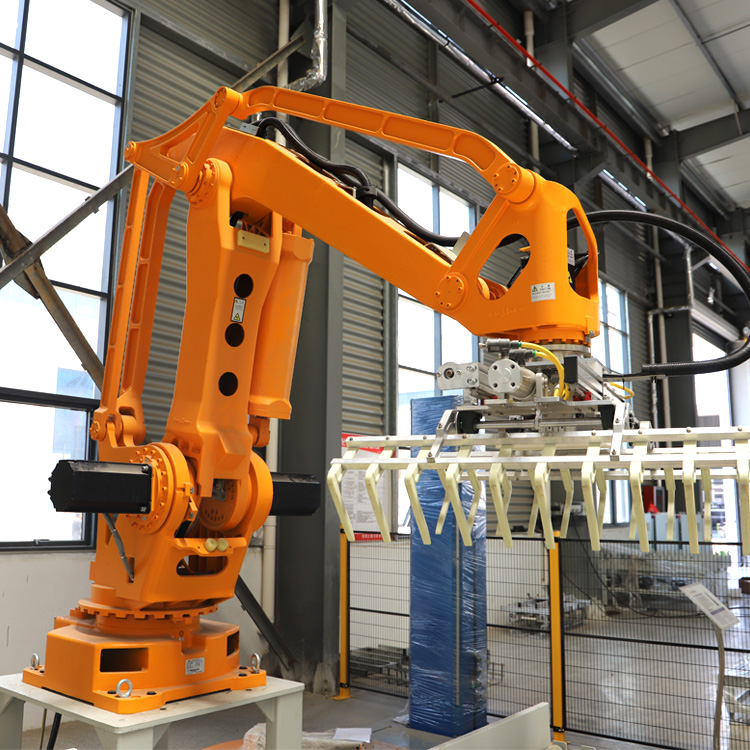

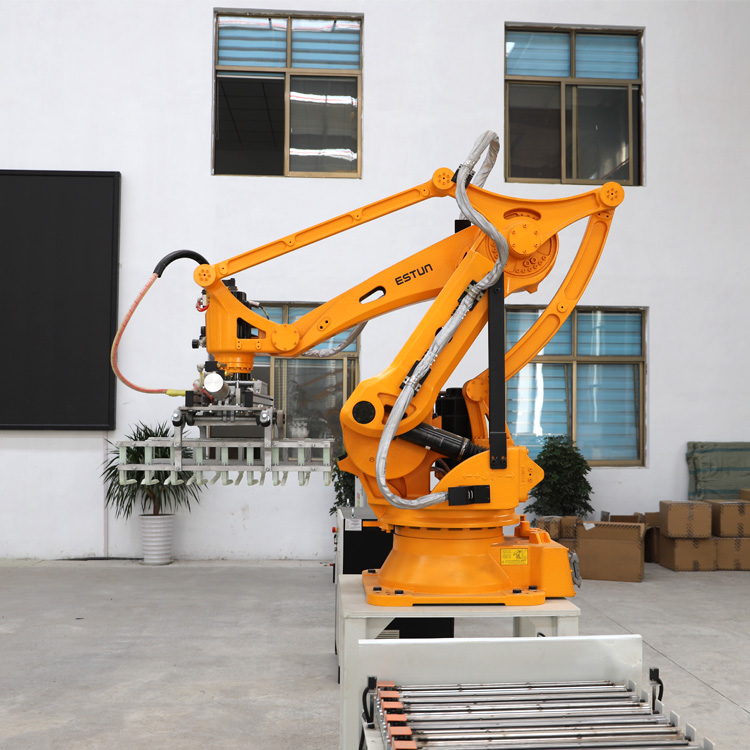

Robot palletizer

Palletizing robots are mainly used in the palletizing and handling of cartons, plastic boxes, bags

and other materials, and are widely used in the production of beverages, bottled water, flour, and

fertilizers.

Palletizing means moving products from the production line to a pallet for shipping or storage.

The trick is to stack the cartons optimally to maximize the volume on the pallet while being sturdy

enough not to shift, tip over or crush each other. Robotic palletizers from FlexLink automate the

palletizing process with industrial and collaborative robots.

Customers all over the world acknowledged our palletizers:
* Safety
* Ease of use
* Compact footprint
* Accessibility

Model No.	LH120-2400
Max. palletizing height	1800,2500
Max. palletizing weight	130KG, 180KG
normal speed	750 packs for single grab, 900 packs for double grab
The power consumption of the entire system	5.5KW,8.0kw
The gas consumption of the entire system is approx.	35 standard/h (0.5-0.7MPa), 30+4
Pallet size L×W×H	1400mmx 1200mm x 150~160mm or 1200mm x 1100mm x 150~160mm
Pallet material	Wood, steel, plastic or other composite materials
Palletizing memory	"2+3", "2×3" or other palletizing modes required on site;
